Industrial Metal High Speed Lathe Machine Automatic Slant Bed

    Buy cheap Industrial Metal High Speed Lathe Machine Automatic Slant Bed from wholesalers

    Buy cheap Industrial Metal High Speed Lathe Machine Automatic Slant Bed from wholesalers
    • Buy cheap Industrial Metal High Speed Lathe Machine Automatic Slant Bed from wholesalers
    • Buy cheap Industrial Metal High Speed Lathe Machine Automatic Slant Bed from wholesalers

    Industrial Metal High Speed Lathe Machine Automatic Slant Bed

    Ask Lasest Price
    Brand Name : Bodsee
    Model Number : BDS-400T-46D
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 30sets per month
    Delivery Time : negotiation
    • Product Details
    • Company Profile

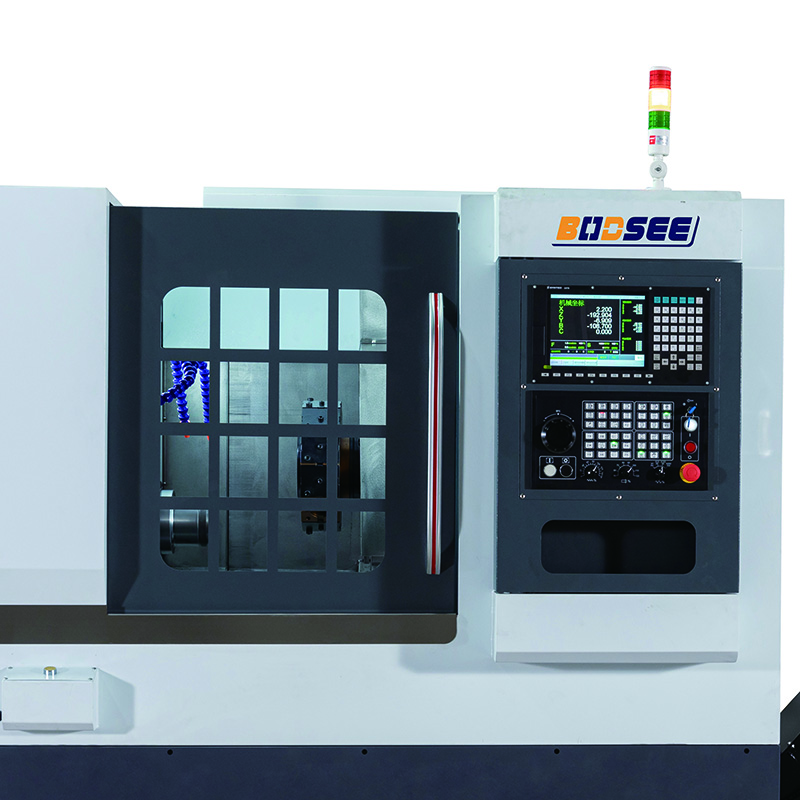

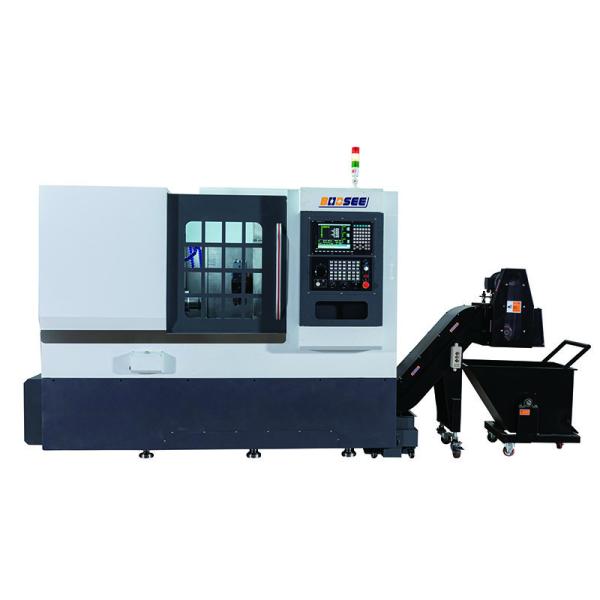

    Industrial Metal High Speed Lathe Machine Automatic Slant Bed

    Metal Turning Lathe Industrial Metal Lathe High Speed Lathe Machine Automatic Lathe Machine Slant Bed

    1. This lathe machine has induction hardened bed way.

    2. The machine can process precisely internal or external diameter, face, taper, arc and threading with high efficiency.

    3. Auto lubrication coolant system, working lamp, tri-colored lamp indication.

    4. Wide flat-belt drive between headstock and motor for powerful non-slip power transmission.


    Description of lathe machine:


    The whole machine has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.


    The specification of cnc lathe machine:


    Model No.BDS-400T-46D
    Diameter of spindle bore56mm
    Maximum admissible bar stock diameter46mm
    Swing over bed500mm
    Tool table plate and spindle center height160mm
    Max.Processing Length460mm
    Bed structure15°
    Specification of spindle endA2-5
    Max. Spindle speed4000r/min
    X axis travel300mm
    Z axis travel500mm
    Y axis travel
    X, Z lead screwR32/C3mm
    X, Z guide rail45Pmm
    G0 Speed22m/min
    Spindle runout0.003mm
    Repeat positioning accuracy0.003mm
    Minimum adjustable unit0.001mm
    Machining accuracyIT6mm
    Specification of power turret100-1225/125-1225/BMT55
    Chuck type6inch
    Machine weight3800KG
    Machine size2600*1800*1900mm

    Our Company:

    ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.


    Industrial High Precision Metal Cnc Lathe Machine 650*190/50mm 1

    Industrial High Precision Metal Cnc Lathe Machine 650*190/50mm 2

    Industrial High Precision Metal Cnc Lathe Machine 650*190/50mm 3


    FAQ:

    1.How to send my enquiry?
    You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
    2. What's the main products of your company?
    We specialized in many kinds of CNC machines, CNC Lathe machines, Vertical VMC Milling Machine.
    3. Are you a manufacturer or a trader?
    we are the manufacturer for CNC Vertical Milling Machines, cnc lathe machine.
    4. Is your company a factory or trading company ?

    We are factory and located in Zhangzhou City, Fujian Province, China.

    5. What's the MOQ?

    A: 1 set .

    6. What is your delivery time ?

    The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
