Carousel Tool Changer / Side-Mount Tool Changer High Speed CNC
Vertical Machine Center
Product Description:

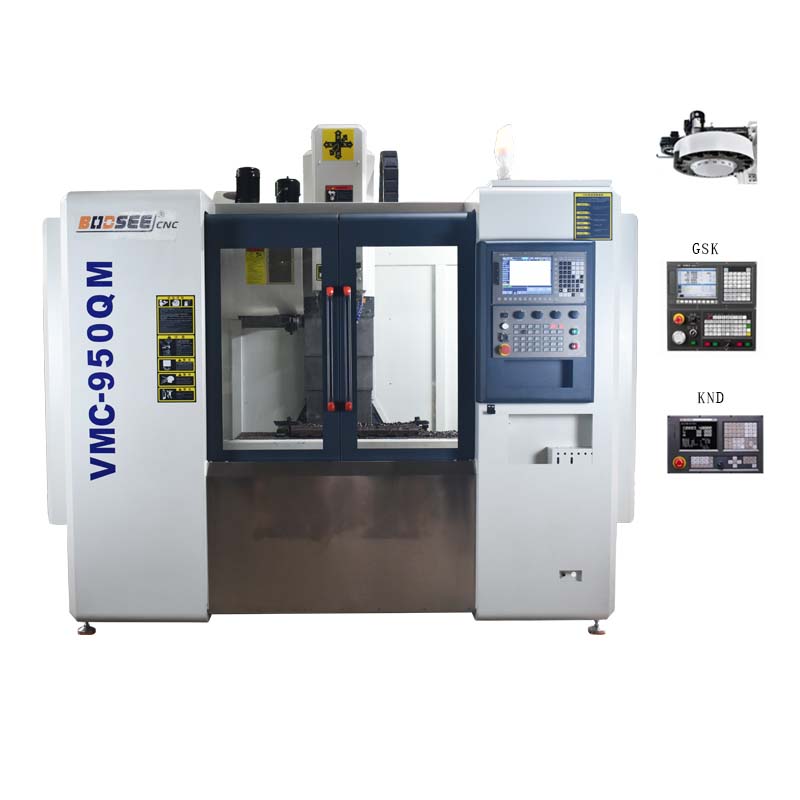

CNC-950QM Vertical Machining Center machine is a numerical control
machine with superior cost performance and equipped with a
numerical control system.It is suitable for processing parts with
high accuracy and productivity requirements and reduces labor
intensity. The machine is suitable for automobile, motorcycle,
aerospace, military, instrument, meter, electronics, mold and other
industries.
Product Specification:
| Model No. | CNC-950QM |
| X axis travel | 900mm |
| Y axis travel | 500mm |
| Z axis travel | 500mm |
| Distance from spindle nose to the work table | 120-620mm |
| Distance from spindle center to column guideway | 580mm |
| X rapid feed | 36m/min |
| Y rapid feed | 36m/min |
| Z rapid feed | 24m/min |
| Cutting rapid feed | 8000mm/min |
| The width of the triaxial linear guide | 35mm |
| The number of the slider in the X axis | 6 pieces |
| The number of the slider in the Y axis | 4 pieces |
| The number of the slider in the Z axis | 4 pieces |
| Triaxial screw size | 40/12mm |
| Work table size | 1500x420mm |
| The maximum load capacity | 400KG |
| Table "T" type groove | The number of grooves | 4pieces |
| Width | 18mm |
| Spacing | 90mm |
| Positioning accuracy | 0.01mm |
| Repeat positioning accuracy | 0.008mm |
| Spindle speed range | 20-8000rpm/min |
| Feed axis motor power | 1.8/1.8/2.5KW |
| Feed motor connection form | Direct Connection |
| Taper of spindle hole | BT40 |
| The spindle of output power | 5.5/7.5KW |
| Cooling box form | Independent |
| Tool Changer | Carousel tool changer /
Side-mount tool changer |
| Tool Capacity | 12-24pieces |
| Dimension of machine tool | 2800*2200*2300mm |
| Weight of machine | 3150KG |
Product Features:
1. The machine bed, column, saddle, worktable, main spindle box and
other main basic parts are made of high quality cast iron. It
adopts special casting process to improve the mechanical properties
of materials. After annealing treatment and vibration aging, remove
stress to ensure good rigidity and damping characteristic when the
machine tool is used for cutting. At the same time, it has good
thermal stability and stabilization precision.
2. The spindle motor and pulley are tested by the dynamic balancing
instrument to ensure smooth operation.
3. The X/Y/Z axis adopts the linear guide-way structure, and the
three-way line rail adopts the heavy pre-pressing process. So that
the machine tool not only has the characteristics of high speed and
high precision, but also has the characteristics of heavy cutting,
excellent rigidity and excellent production efficiency.
Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in
Zhangzhou, Fujian, China. Our company is a Scientific and
Technological Enterprises specializing in CNC machine research and
development, manufacturing and sales. With over 20 years of CNC
machine manufacturing experience, ASLT has accumulated strong
technical force and has many professional and technical personnel.
FAQ:
1. How to send my enquiry?
A: You can contact us by email, phone call, Instant Messenger
(WhatsApp, WeChat, Skype).
2 . How can I choose the most suitable machines?
A: Please tell us your requirement of the machine, or you can also
send us the products drawing, our engineer can help to choose the
best model for you.
Q3. Where is the factory located? How can I visit there?
A: Our factory is located in Zhangzhou City, Fujian Province,
China. With very convenient transportation access.
Q4. What's the MOQ?
A: MOQ is 1 set.
Q5. What is your delivery time ?
A: The delivery depends on different machines with different
configurations. Please contact us to confirm if it is in stock or
not.
