    900mm X Axis VMC 4 Axis Machine 1500x420mm Work Table For Metal Processing

    Ask Lasest Price
    Brand Name : Bodsee
    Model Number : CNC-950GM
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 30set/month
    Delivery Time : Negotiation
    • Product Details
    • Company Profile

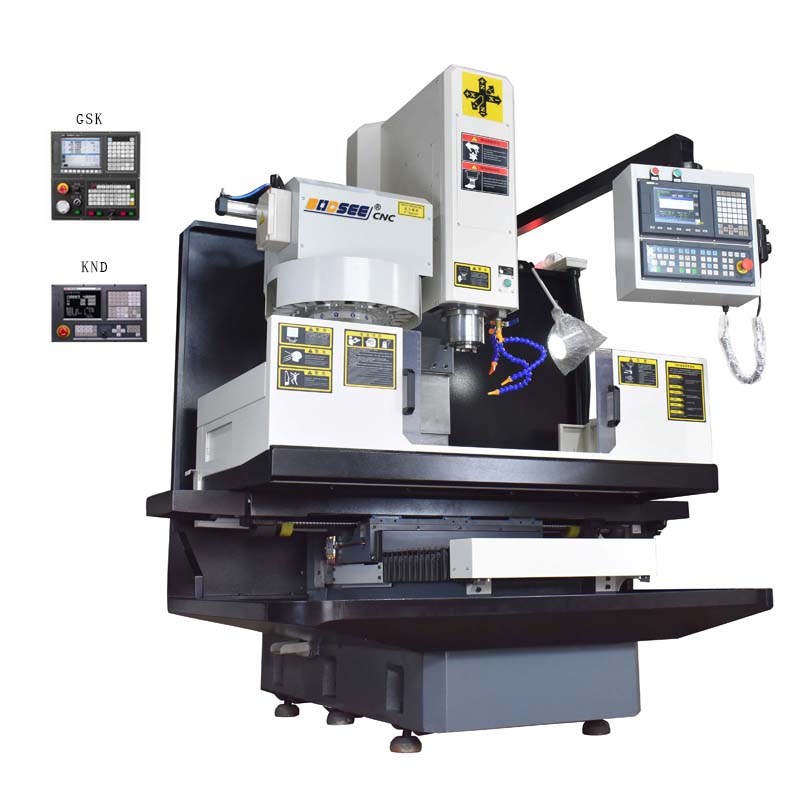

    900mm X Axis VMC 4 Axis Machine 1500x420mm Work Table For Metal Processing

    900mm X Axis 0.008mm Repeat Positioning Accuracy 4 Axis VMC Machine For Metal Processing

    Product Advantages:

    1. High rigidity and great ability of shock absorption.

    2. High efficiency: equipped with a tool magazine featuring swift automatic tool changing and rigidity tapping

    3. Large travel: larger travels in all three directions than those of the same specifications in the market.


    Product Specification:

    Model No.CNC-950GM
    X axis travel900mm
    Y axis travel500mm
    Z axis travel500mm
    Distance from spindle nose to the work table120-620mm
    Distance from spindle center to column guideway580mm
    X rapid feed36m/min
    Y rapid feed36m/min
    Z rapid feed24m/min
    Cutting rapid feed8000mm/min
    The width of the triaxial linear guide35mm
    The number of the slider in the X axis6 pieces
    The number of the slider in the Y axis4 pieces
    The number of the slider in the Z axis4 pieces
    Triaxial screw size40/12mm
    Work table size1500x420mm
    The maximum load capacity400KG
    Table "T" type grooveThe number of grooves4pieces
    Width18mm
    Spacing90mm
    Positioning accuracy0.01mm
    Repeat positioning accuracy0.008mm
    Spindle speed range20-8000rpm/min
    Feed axis motor power1.8/1.8/2.5KW
    Feed motor connection formDirect Connection
    Taper of spindle holeBT40
    The spindle of output power5.5KW
    Cooling box formIndependent
    Tool ChangerCarousel tool changer
    Tool Capacity12pieces
    Dimension of machine tool1950/1700/2300mm
    Weight of machine2250KG


    Product Description:

    Vertical machining center is mainly used for plate, shell parts, mold and other high precision, working procedure, shape more complex parts, it can be finished in a clamping continuous milling, drilling, expansion, reaming, boring, tapping and two-dimensional three-dimensional curved surface, precise machining of the inclined plane, processing to realize programmed, shorten the production cycle, thus to make the good economic benefits.


    Our Company:

    ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.


    Workpiece Sample:
