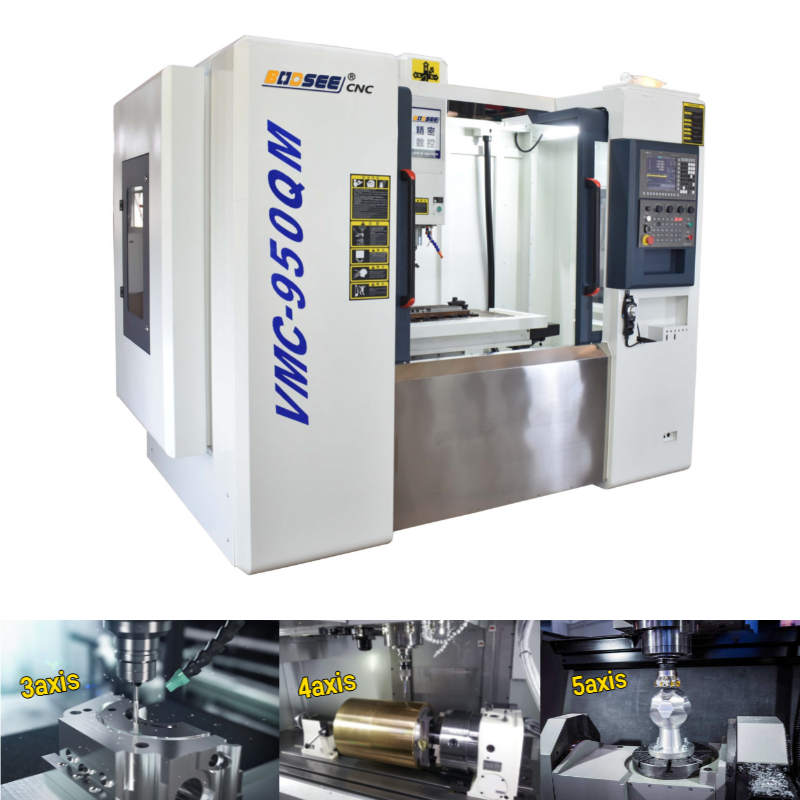

900 X Axis Travel CNC Machine Center 4 Axis VMC Machine strong
rigidity
Product Description:
CNC machining center is the world's highest yield, the most widely
used one of the CNC machine tools. It is mainly used for plate,
shell parts, mold and other high precision, working procedure,
shape more complex parts, it can be finished in a clamping
continuous milling, drilling, expansion, reaming, boring, tapping
and two-dimensional three-dimensional curved surface, precise
machining of the inclined plane, processing to realize programmed,
shorten the production cycle, thus to make the good economic
benefits.
Product Specification:
| Model No. | CNC-950QM |
| X axis travel | 900mm |
| Y axis travel | 500mm |
| Z axis travel | 500mm |
| Distance from spindle nose to the work table | 120-620mm |
| Distance from spindle center to column guideway | 580mm |
| X rapid feed | 36m/min |
| Y rapid feed | 36m/min |
| Z rapid feed | 24m/min |
| Cutting rapid feed | 8000mm/min |
| The width of the triaxial linear guide | 35mm |
| The number of the slider in the X axis | 6 pieces |
| The number of the slider in the Y axis | 4 pieces |
| The number of the slider in the Z axis | 4 pieces |
| Triaxial screw size | 40/12mm |
| Work table size | 1500x420mm |
| The maximum load capacity | 400KG |
| Table "T" type groove | The number of grooves | 4pieces |
| Width | 18mm |
| Spacing | 90mm |
| Positioning accuracy | 0.01mm |
| Repeat positioning accuracy | 0.008mm |
| Spindle speed range | 20-8000rpm/min |
| Feed axis motor power | 1.8/1.8/2.5KW |
| Feed motor connection form | Direct Connection |
| Taper of spindle hole | BT40 |
| The spindle of output power | 5.5/7.5KW |
| Cooling box form | Independent |
| Tool Changer | Carousel tool changer /
Side-mount tool changer |
| Tool Capacity | 12-24pieces |
| Dimension of machine tool | 2800*2200*2300mm |
| Weight of machine | 3150KG |
Product Features:
1. High strength alloy cast iron.
2. Easy accessibility of work table for easy setup and tooling.
3. Machine frame with linear guides in an extra-wide configuration,
Robust construction for efficient machining.
4. Pneumatic parts, electrical parts, operating parts, spindle,
rail and screw are all of the brand -name parts
5. Large travel: larger travels in all three directions than those
of the same specifications in the market.
Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in
Zhangzhou, Fujian, China. Our company is a Scientific and
Technological Enterprises specializing in CNC machine research and
development, manufacturing and sales. With over 20 years of CNC
machine manufacturing experience, ASLT has accumulated strong
technical force and has many professional and technical personnel.
Workpiece Sample:
Our Exhibition:
FAQ:
1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger
(WhatsApp, WeChat, Skype).
2. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also
send us the products drawing, our engineer can help to choose the
best model for you.
3: What's your main products of your company?
We specialized in cnc vertical machine, VMC milling machine.
4. Check the acceptance
When receiving the goods, please check product carefully: Whether
there is packing damage, leakage and whether the goods are
damaged; Whether product quantity and accessories are same as
required; Whether all machine details are fine If there is any
problem about machine, please take pictures and contact us
immediately.
5. OEM Service
We accept purchase orders with customers' brand or trade mark.
