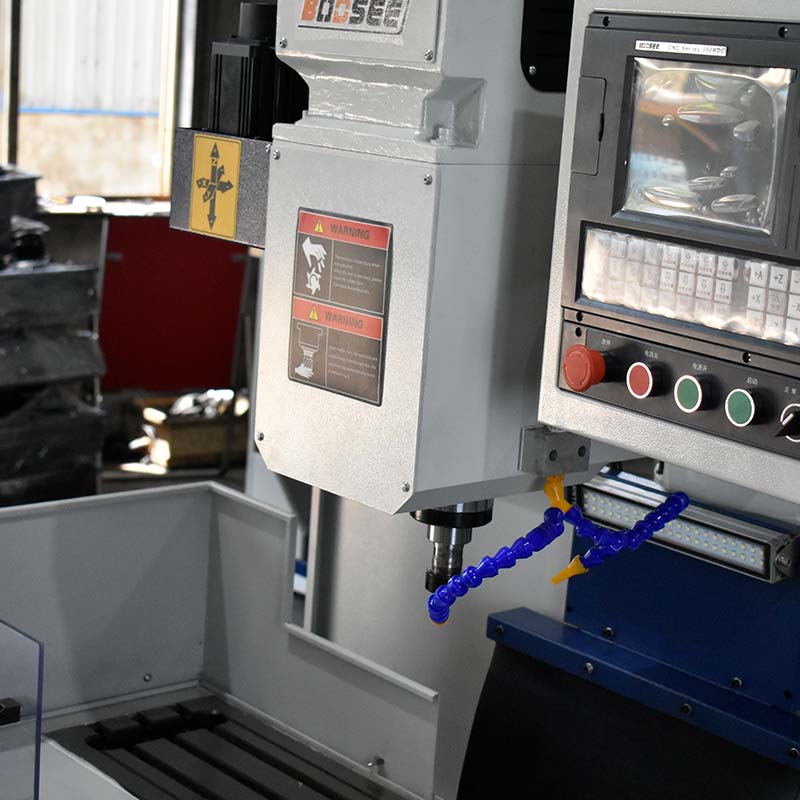

    Fully Automatic CNC VMC Milling Machine Vertical 1~4000 mm/Min Cutting Rapid Feed

    Ask Lasest Price
    Brand Name : Bodsee
    Model Number : CNC-M4S
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 30set/month
    Delivery Time : Negotiation
    • Product Details
    • Company Profile

    Fully Automatic CNC VMC Milling Machine Vertical 1~4000 mm/Min Cutting Rapid Feed

    VMC Milling Machine Fully Automatic Cnc Vertical Machining Center 1~4000mm/Min Cutting Rapid Feed


    Product Features:

    1. High strength resin sand casting

    2. R8 spindle

    3. It can install 4th axis and install 5th axis

    4. Made of high-density, high rigidity material, high strength and good wear resistance

    5. Precision casting, precision machining, precision assembly


    Product Specification:


    Model No.CNC-M4S
    X axis travel830mm
    Y axis travel340(360)mm
    Z axis travel360+120 mm
    Distance from spindle nose to the work table120+360mm
    Distance from spindle center to column guideway370mm
    X rapid feed8 m/min
    Y rapid feed8 m/min
    Z rapid feed6 m/min
    Cutting rapid feed1~4000mm/min
    Triaxial screw sizeX3208
    Y3208
    Z2505
    Work table size1370*280mm
    The maximum load capacity350KG
    Table "T" type grooveThe number of grooves3pieces
    Width16.5mm
    Spacing63.5mm
    Positioning accuracy0.025/300mm
    Repeat positioning accuracy0.015mm
    Spindle speed range80-4500r/min
    Spindle Motor Power(kW)3kw
    Spindle DiameterΦ85.725mm
    Cooling Motor0.15kw
    Triaxial Feed Motor Torque6/6/4Nm
    Taper of spindle holeR8(NT30)
    Power Form (Voltage)Customized
    Electric Capacity7KVA
    Water tank capacity40L
    Cooling box formIntegrated
    Dimension of machine tool1500/1820/2380mm
    Weight of machine1700kg

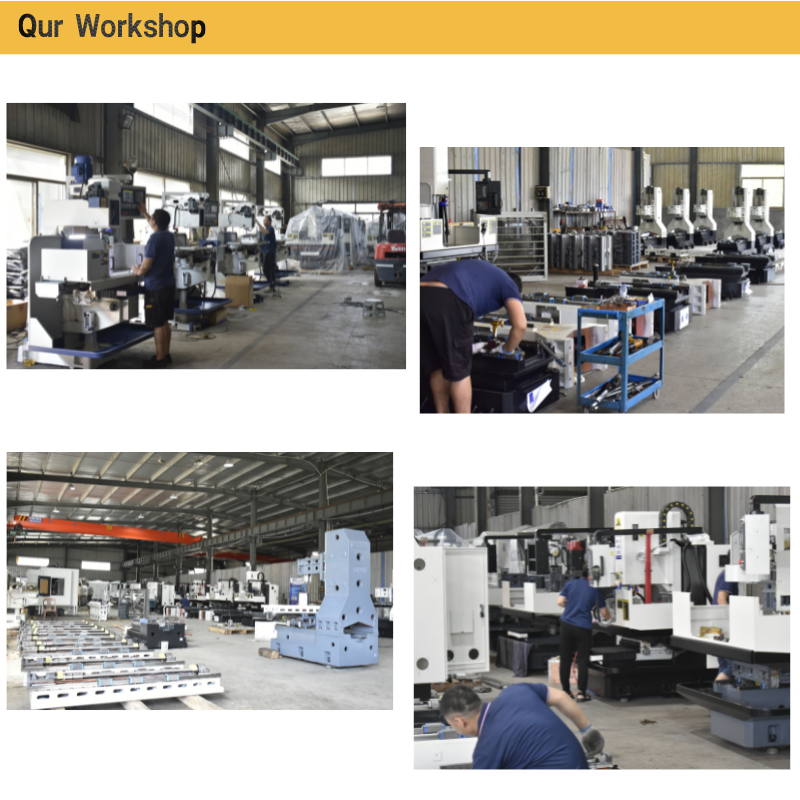

    Our company:

    ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.


    Product Description:

    CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools.

    This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing

    requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling

    ,tapping,boring ,etc.


    Workpiece Samples:


    FAQ:

    How can I choose the most suitable machines ?

    A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model.


    What's your main products of your company?

    A: We specialized in CNC Milling Machine, VMC Machine.


    Where is our factory located? How can I visit there?

    A: Our factory is located in Zhangzhou City, Fujian Province, China. You are warmly welcomed to visit us.


    What is your delivery time ?

    A: The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
