BT40 Spindle 950mm X Axis 1500x420mm Work Table Metal Cutting VMC
Milling Machine For Metal
Product Description:

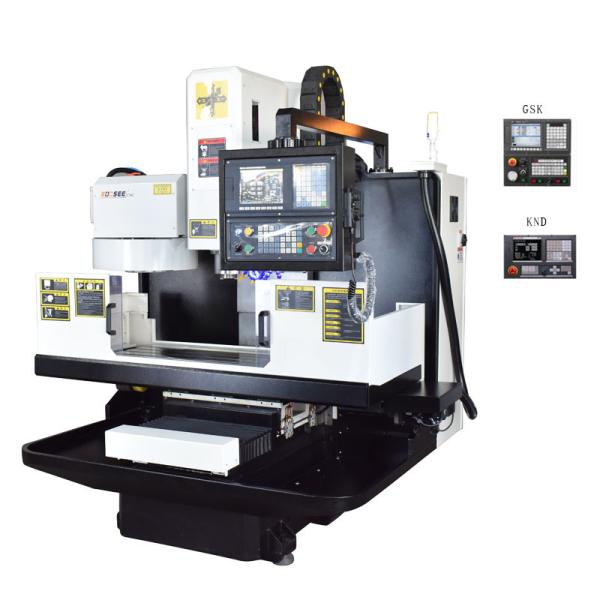

CNC-940GM Vertical Machining Center machine is a numerical control
machine with superior cost performance and equipped with a
numerical control system.
It is suitable for processing parts with high accuracy and
productivity requirements and reduces labor intensity.
The machine is suitable for automobile, motorcycle, aerospace,
military, instrument, meter, electronics, mold and other
industries.
It can realize hole-machining operations such as drilling,
counterboring, reaming,Boring, and tapping processing for various
complex parts such as discs, plates, shells, cams, molds, etc..
Production Specification:
| Model No. | CNC-940GM |
| X axis travel | 950mm |
| Y axis travel | 380mm |
| Z axis travel | 450mm |
| Distance from spindle nose to the work table | 120mm |
| Distance from spindle center to column guideway | 460mm |
| X rapid feed | 36m/min |
| Y rapid feed | 36m/min |
| Z rapid feed | 24m/min |
| X/Y axis feed motor rated power | 1.6/2.0kw |
| X/Y axis feed motor rated output torque | 7.7-8.4Nm |
| Z axis feed motor rated power | 2.6kw |
| Z axis feed motor rated output torque | 10Nm |
| Cutting rapid feed | 0-8000mm/min |
| The width of the triaxial linear guide | 35mm |
| The number of the slider in the X axis | 6 pieces |
| The number of the slider in the Y axis | 4 pieces |
| The number of the slider in the Z axis | 4 pieces |
| Triaxial screw size | 40/12mm |
| Work table size | 1500x420mm |
| The maximum load capacity | 400KG |
| Table "T" type groove | The number of grooves | 4pieces |
| Width | 18mm |
| Spacing | 90mm |
| Positioning accuracy | 0.01mm |
| Repeat positioning accuracy | 0.008mm |
| Spindle speed range | 20-8000rpm/min |
| Main servo motor rated power | 3.7kw |
| Main servo motor 30 minute locked-rotor power | 5.5kw |
| Main servo motor rated output torque | 24Nm |
| Spindle sssembly dynamic balance mode | G1 |
| Feed motor connection form | Direct connection |
| Taper of spindle hole | BT40 |
| Tool changer | Carousel tool changer |
| Tool Capacity | 12piece |
| Max tool diameter (Full) | Ф75mm |
| Max tool weight | 7kg |
| Max tool length | 300mm |
| Cutting Tool Selection Mode | Forward and reverse arbitrary tool selection |
| Machine tool electric gross capacity | 10KVA |
| Power requirements | Customized |
| Dimension of machine tool | 1950x1600x2000 mm |
| Weight of machine | 1950KG |
| Machine protection shield | Half Cover/Semi enclosed |
Product Features:
1. The machine bed, column, saddle, worktable, main spindle box and
other main basic parts are made of high quality cast iron. It
adopts special casting process to improve the mechanical properties
of materials. After annealing treatment and vibration aging, remove
stress to ensure good rigidity and damping characteristic when the
machine tool is used for cutting.
2. The spindle motor and pulley are tested by the dynamic balancing
instrument to ensure smooth operation.
3. The components of feed adopt precision ball screw, the axial
bearing at both ends adopt leading screw special bearing and the
ball screw is prestretching. The lead screw and motor are connected
by a direct connection rigid coupling without clearance. The
ceaseless transmission, small moment of inertia and high
transmission stiffness.
Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in
Zhangzhou, Fujian, China. Our company is a Scientific and
Technological Enterprises specializing in CNC machine research and
development, manufacturing and sales. With over 20 years of CNC
machine manufacturing experience, ASLT has accumulated strong
technical force and has many professional and technical personnel.
FAQ:
1.How to send my enquiry?
You can contact us by email, phone call, Instant Messenger
(WhatsApp, WeChat, Skype).
2 . How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also
send us the products drawing, our engineer can help to choose the
best model for you.
3. Are you a manufacturer or a trader?
we are the manufacturer for CNC Vertical Milling Machines.
4. Lowest price?We are the factory, we directly providing the lowest price with
ensured after sale service.
Thank you for your precious time!
