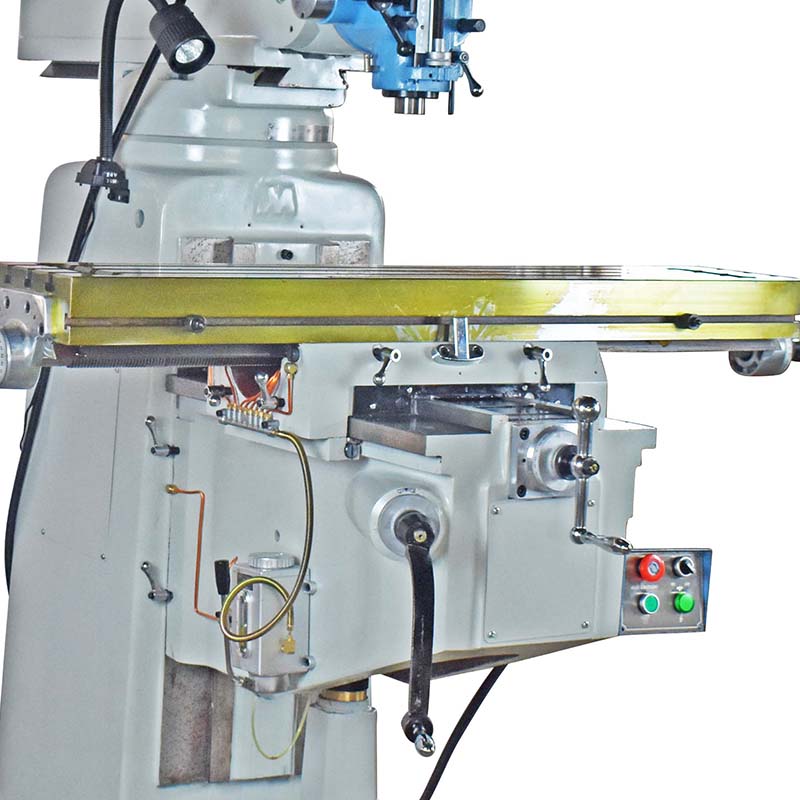

    R8 NT30 NT40 Vertical Turret Milling Machine 1270x254mm Worktable Size

    Ask Lasest Price
    Model Number : WC-WL4BS
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 30set/month
    Delivery Time : negotation
    • Product Details
    • Company Profile

    R8 NT30 NT40 Vertical Turret Milling Machine 1270x254mm Worktable Size

    R8 NT30 NT40 Spondle Taper 1270x254mm Worktable Size Powerful Vertical Turret Milling Machine


    The spindle is made of chrome-molybdenum steel, after heat treatment and precision grinding, it is rigid and tough, and can withstand heavy cutting.

    The lifting sleeve is chrome and precision ground, and matched with the precision grade main shaft to match the bearing.

    It has strong cutting ability and good precision.


    Item No.WC-WL4BS
    Spindle speedR.P.M75~4630(16)
    Spindle taper R8 or NT30 or NT40
    Head tilt(right-left) 45 degree
    Table length x table widthmm1270*254
    Table load(Max.)kg300
    X-axis manual travelmm760
    Y-axis manual travelmm350
    Z-axis manual travelmm350
    Spindle nose to Tablemm75-460
    Overam travemm430
    Spindle Z-axis manual travelmm127
    Quill feed feedsmm/rev0.04/0.08/0.15
    Machine size(LxWxH)mm1750*1700*2100
    X.Y.Z.Guiding tracksmm▲ ■ ▲
    Net weight (approx.)kg1050


    Company Information:


    ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
