    0.04 0.08 0.15 Quill Feed Feeds Metal Turret Milling Machine Vertical

    Ask Lasest Price
    Model Number : WC-WL3BS
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 30set/month
    Delivery Time : negotation
    • Product Details
    • Company Profile

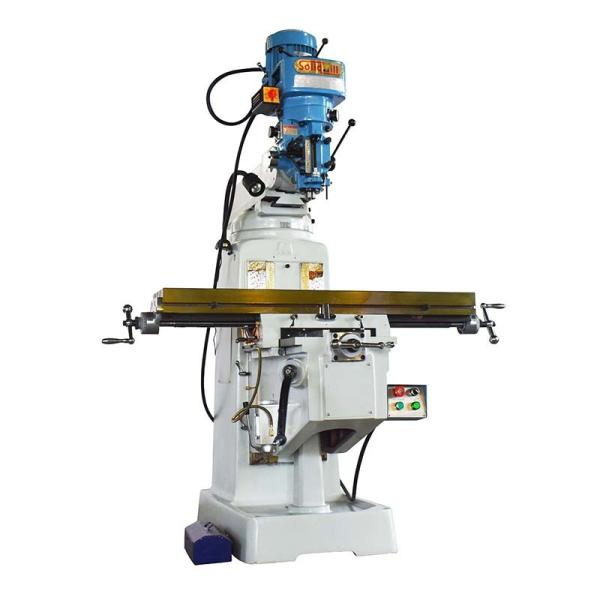

    0.04 0.08 0.15 Quill Feed Feeds Metal Turret Milling Machine Vertical

    0.04/0.08/0.15 Quill Feed Feeds Metal Turret Milling Machine Turret Head Milling Machine Turret Vertical Milling Machine


    Item No.WC-WL3BS
    Spindle speedR.P.M

    75~4630(16)

    Spindle taper

    R8 or NT30 orNT40

    Head tilt(right-left)45degree
    Table length x table widthmm1270*254
    Table load(Max.)kg300

    X-axis manual travel

    mm760
    Y-axis manual travelmm350
    Z-axis manual travelmm350
    Spindle nose to Tablemm75-460
    Overam travelmm430
    Spindle Z-axis manual travelmm127
    Quill feed feedsmm/rev0.04/0.08/0.15
    machine size(LxWxH)mm1750*1700*2100
    X.Y.Z.Guiding tracksmm▲ ▲ ▲

    net weight (approx.)

    kg1050

    Application:


    Turret milling machine can be widely used for machining planes, inclined planes of any angle, milling key grooves, grooves, drilling, reaming, boring. Large spindle speed range and high speed. The main shaft sleeve, the machine tool guide, and the workbench are all hardened with high frequency, which is beautiful and practical.



    Company Information:


    ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.



    If you are interested in any items, please feel free to contact us. Thank you!
