    Three Axis Turret Head Milling Machine Vertical For Metal Processing

    Ask Lasest Price
    Model Number : WC-WL3BS
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 30set/month
    Delivery Time : negotation
    • Product Details
    • Company Profile

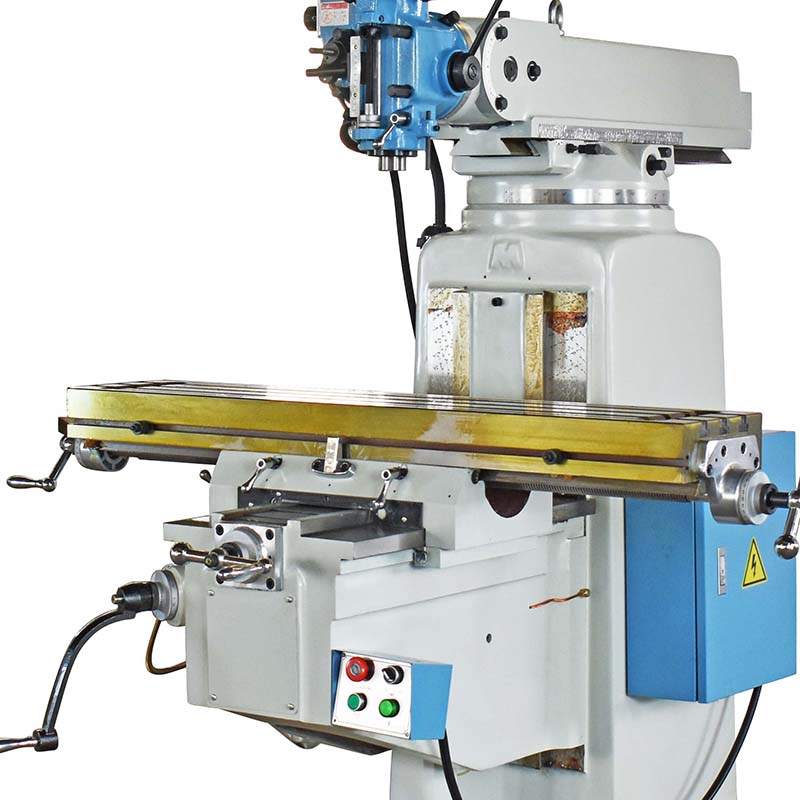

    Three Axis Turret Head Milling Machine Vertical For Metal Processing

    Three Axis Turret Head Milling Machine Vertical Turret Head Milling Machine For Metal Processing


    Y-axis slide rail is parallel slide rail, and the bed platform is stable and can withstand heavy cutting.

    The spindle gearbox adopts patented design, with small energy loss and strong horsepower.


    Item No.WC-WL3BS
    Spindle speedR.P.M

    75~4630(16)

    Spindle taper

    R8 or NT30 orNT40

    Head tilt(right-left)45degree
    Table length x table widthmm1270*254
    Table load(Max.)kg300

    X-axis manual travel

    mm760
    Y-axis manual travelmm350
    Z-axis manual travelmm350
    Spindle nose to Tablemm75-460
    Overam travelmm430
    Spindle Z-axis manual travelmm127
    Quill feed feedsmm/rev0.04/0.08/0.15
    machine size(LxWxH)mm1750*1700*2100
    X.Y.Z.Guiding tracksmm▲ ▲ ▲

    net weight (approx.)

    kg1050

    Application:


    Because the machine tool is easy to operate and use, it is suitable for the maintenance and production of various enterprises, especially for tool, measuring tool and mold manufacturing enterprises.



    Company Information:


    ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.



    If you are interested in any items, please feel free to contact us. Thank you!
