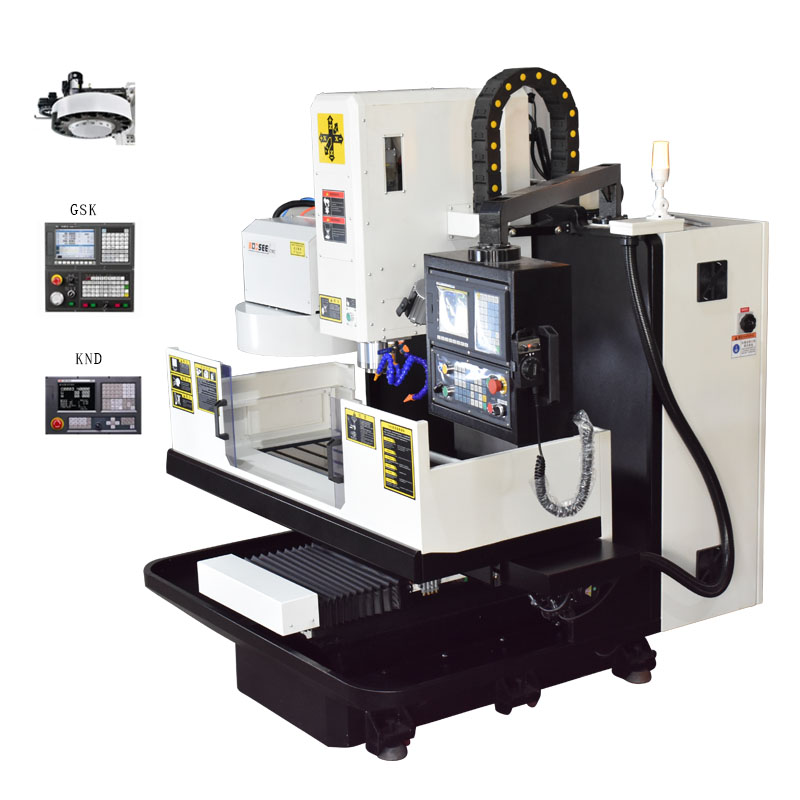

    400KG Max Load BT40 High Speed VMC Machine Milling Automated CNC Machine

    Ask Lasest Price
    Brand Name : Bodsee
    Model Number : CNC-940GM
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 30set/month
    Delivery Time : Negotiation
    • Product Details
    • Company Profile

    400KG Max Load BT40 High Speed VMC Machine Milling Automated CNC Machine

    Automated High Speed VMC Machine BT40 CNC Milling Machine 400KG Max Load


    Product Description:

    1. CNC machining center: the characteristics of heavy cutting, excellent rigidity and excellent production efficiency.

    2. The CNA-940GM CNC Machine adopts special casting process to improve the mechanical properties of materials.

    3. BT40 Spindle

    4. High speed and high precision

    5. The spindle motor and pulley are tested by the dynamic balancing instrument to ensure smooth operation.


    Production Specification:


    Model No.CNC-940GM
    X axis travel950mm
    Y axis travel380mm
    Z axis travel450mm
    Distance from spindle nose to the work table120mm
    Distance from spindle center to column guideway460mm
    X rapid feed36m/min
    Y rapid feed36m/min
    Z rapid feed24m/min
    X/Y axis feed motor rated power1.6/2.0kw
    X/Y axis feed motor rated output torque7.7-8.4Nm
    Z axis feed motor rated power2.6kw
    Z axis feed motor rated output torque10Nm
    Cutting rapid feed0-8000mm/min
    The width of the triaxial linear guide35mm
    The number of the slider in the X axis6 pieces
    The number of the slider in the Y axis4 pieces
    The number of the slider in the Z axis4 pieces
    Triaxial screw size40/12mm
    Work table size1500x420mm
    The maximum load capacity400KG
    Table "T" type grooveThe number of grooves4pieces
    Width18mm
    Spacing90mm
    Positioning accuracy0.01mm
    Repeat positioning accuracy0.008mm
    Spindle speed range20-8000rpm/min
    Main servo motor rated power3.7kw
    Main servo motor 30 minute locked-rotor power5.5kw
    Main servo motor rated output torque24Nm
    Spindle sssembly dynamic balance modeG1
    Feed motor connection formDirect connection
    Taper of spindle holeBT40
    Tool changerCarousel tool changer
    Tool Capacity12piece
    Max tool diameter (Full)Ф75mm
    Max tool weight7kg
    Max tool length300mm
    Cutting Tool Selection ModeForward and reverse arbitrary tool selection
    Machine tool electric gross capacity10KVA
    Power requirementsCustomized
    Dimension of machine tool1950x1600x2000 mm
    Weight of machine1950KG
    Machine protection shieldHalf Cover/Semi enclosed


    Our Company:

    ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.


    Workpiece Sample:



    FAQ:
    1. How to send my enquiry?
    You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
    2. How can I choose the most suitable machines?
    Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
    best model for you.

    3. OEM Service

    We accept purchase orders with customers' brand or trade mark.

    4. Is your company a factory or trading company ?

    We are factory and located in Zhangzhou City, Fujian Province, China.


    Thank you for your precious time! For more information about the Machining Center, please feel free to contact me!
