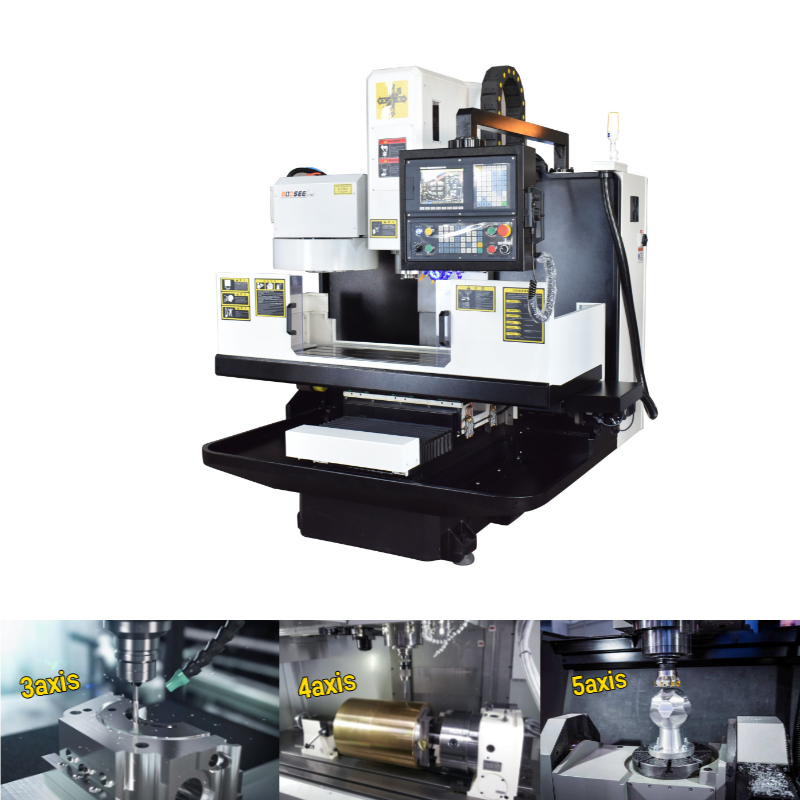

    Metal Cutting CNC VMC Milling Machine 36m/Min X Rapid Feed 20-8000 Rpm/Min

    Ask Lasest Price
    Brand Name : Bodsee
    Model Number : CNC-940GM
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 30set/month
    Delivery Time : Negotiation
    • Product Details
    • Company Profile

    Metal Cutting CNC VMC Milling Machine 36m/Min X Rapid Feed 20-8000 Rpm/Min

    1500x420mm Work Table 0.01mm Positioning Accuracy Metal Cutting VMC Milling Machine For Meta

    Product Description:


    CNC VMC is composed of mechanical equipment and numerical control system. Is an automated machine that is suitable for efficient machining of complex parts. CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools.


    Production Specification:


    Model No.CNC-940GM
    X axis travel950mm
    Y axis travel380mm
    Z axis travel450mm
    Distance from spindle nose to the work table120mm
    Distance from spindle center to column guideway460mm
    X rapid feed36m/min
    Y rapid feed36m/min
    Z rapid feed24m/min
    X/Y axis feed motor rated power1.6/2.0kw
    X/Y axis feed motor rated output torque7.7-8.4Nm
    Z axis feed motor rated power2.6kw
    Z axis feed motor rated output torque10Nm
    Cutting rapid feed0-8000mm/min
    The width of the triaxial linear guide35mm
    The number of the slider in the X axis6 pieces
    The number of the slider in the Y axis4 pieces
    The number of the slider in the Z axis4 pieces
    Triaxial screw size40/12mm
    Work table size1500x420mm
    The maximum load capacity400KG
    Table "T" type grooveThe number of grooves4pieces
    Width18mm
    Spacing90mm
    Positioning accuracy0.01mm
    Repeat positioning accuracy0.008mm
    Spindle speed range20-8000rpm/min
    Main servo motor rated power3.7kw
    Main servo motor 30 minute locked-rotor power5.5kw
    Main servo motor rated output torque24Nm
    Spindle sssembly dynamic balance modeG1
    Feed motor connection formDirect connection
    Taper of spindle holeBT40
    Tool changerCarousel tool changer
    Tool Capacity12piece
    Max tool diameter (Full)Ф75mm
    Max tool weight7kg
    Max tool length300mm
    Cutting Tool Selection ModeForward and reverse arbitrary tool selection
    Machine tool electric gross capacity10KVA
    Power requirementsCustomized
    Dimension of machine tool1950x1600c2000mm
    Weight of machine1950KG
    Machine protection shieldHalf Cover/Semi enclosed


    Product Features:

    1. The machine bed, column, saddle, worktable, main spindle box and other main basic parts are made of high quality cast iron. It adopts special casting process to improve the mechanical properties of materials. After annealing treatment and vibration aging, remove stress to ensure good rigidity and damping characteristic when the machine tool is used for cutting.

    2. The spindle motor and pulley are tested by the dynamic balancing instrument to ensure smooth operation.

    3. The components of feed adopt precision ball screw, the axial bearing at both ends adopt leading screw special bearing and the ball screw is prestretching. The lead screw and motor are connected by a direct connection rigid coupling without clearance. The ceaseless transmission, small moment of inertia and high transmission stiffness.


    Our Company:

    ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

    Workpiece Sample:


    FAQ:

    How can I choose the most suitable machines ?

    A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

    You can also send us the products drawing ,we will choose the most suitable machines for you .

    What's your main products of your company?

    A: We specialized in CNC Milling Machine ,Vertical Machining Center.

    Where is our factory located? How can I visit there?

    A: Our factory is located in Zhangzhou City, Fujian Province, China. You are warmly welcomed to visit us.
