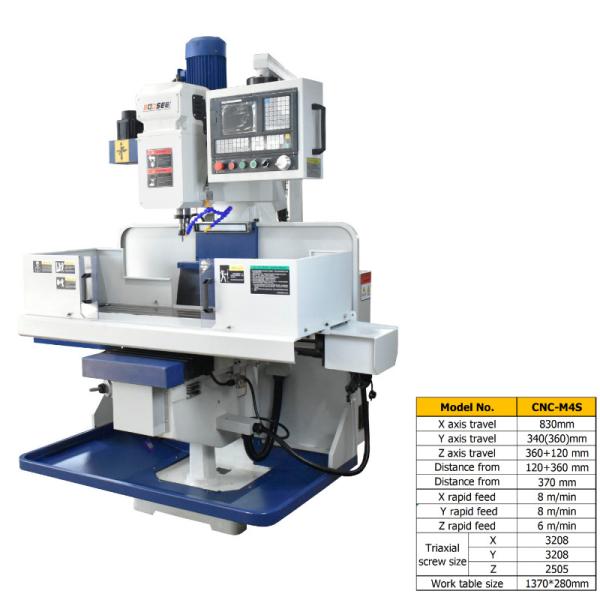

    350KG Max Load VMC Heavy Duty CNC Milling Machines 360+120mm Z Axis Travel

    Ask Lasest Price
    Brand Name : Bodsee
    Model Number : CNC-M4S
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 30set/month
    Delivery Time : Negotiation
    • Product Details
    • Company Profile

    350KG Max Load VMC Heavy Duty CNC Milling Machines 360+120mm Z Axis Travel

    Z Axis Travel 360+120 Mm CNC VMC Machine 350KG Max Load Capacity


    Product Features:

    1. The machine external protection of the machine tool adopts semi-protective structure design, which is easy to operate, safe and reliable;

    2. X, Y, Z three-axis have large travel, especially suitable for the parts machining.

    3. The machine external protection of the machine tool adopts semi-protective structure design, which is easy to operate, safe and reliable;

    4. 3 Axis.


    Product Specification:


    Model No.CNC-M4S
    X axis travel830mm
    Y axis travel340(360)mm
    Z axis travel360+120 mm
    Distance from spindle nose to the work table120+360mm
    Distance from spindle center to column guideway370mm
    X rapid feed8 m/min
    Y rapid feed8 m/min
    Z rapid feed6 m/min
    Cutting rapid feed1~4000mm/min
    Triaxial screw sizeX3208
    Y3208
    Z2505
    Work table size1370*280mm
    The maximum load capacity350KG
    Table "T" type grooveThe number of grooves3pieces
    Width16.5mm
    Spacing63.5mm
    Positioning accuracy0.025/300mm
    Repeat positioning accuracy0.015mm
    Spindle speed range80-4500r/min
    Spindle Motor Power(kW)3kw
    Spindle DiameterΦ85.725mm
    Cooling Motor0.15kw
    Triaxial Feed Motor Torque6/6/4Nm
    Taper of spindle holeR8(NT30)
    Power Form (Voltage)Customized
    Electric Capacity7KVA
    Water tank capacity40L
    Cooling box formIntegrated
    Dimension of machine tool1500/1820/2380mm
    Weight of machine1700kg


    Our company:

    ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.


    Workpiece Sample:
