    High Rigidity XYZ Axis CNC VMC Machine Three Axis 400KG Max Load

    Ask Lasest Price
    Brand Name : Bodsee
    Model Number : CNC-950GM
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 30set/month
    Delivery Time : Negotiation
    • Product Details
    • Company Profile

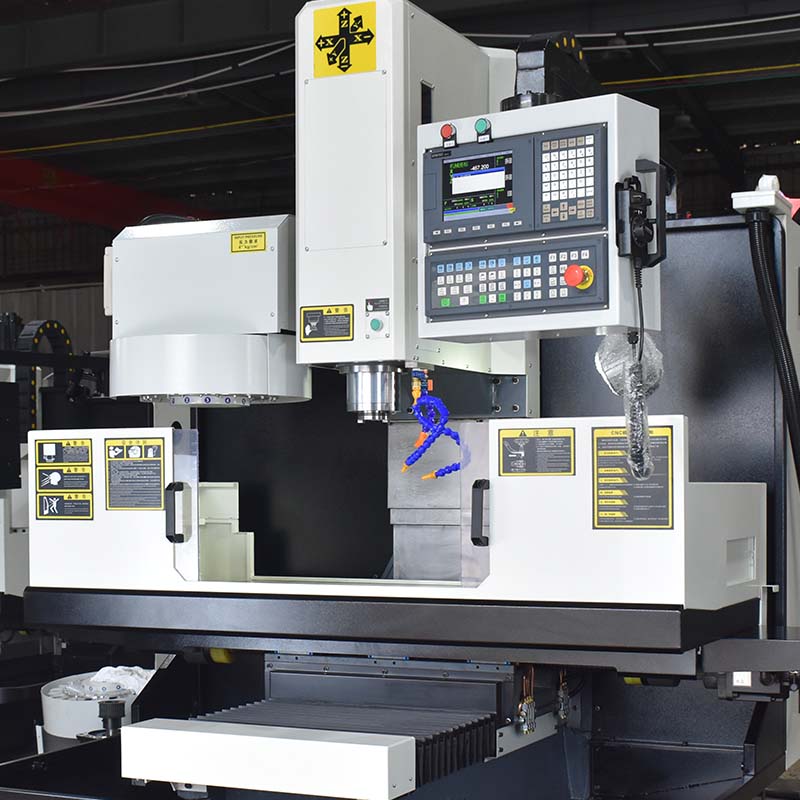

    High Rigidity XYZ Axis CNC VMC Machine Three Axis 400KG Max Load

    High Rigidity CNC VMC Machine Center With X Y And Z Three Axis 400KG Max Load


    Product Description:

    CNC-950GM CNC Vertical Machining is the world's highest yield, the most widely used one of the CNC machine tools.

    The efficiency of ordinary equipment is 5 to 10 times, in particular, it can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing.


    1. The overall framework is made of high toughness and high grade casting iron.

    2. The long span Y type column design leads high rigidity and high stability.

    3. Using P3 class precision ball screw on 3 axes with double nuts and washers pre-loading to pre-eliminate back lash achieves position accuracy and repeatability accuracy with high stability

    4. Leveling blocks & bolts;

    5. Toolbox and tools.


    Product Specification:

    Model No.CNC-950GM
    X axis travel900mm
    Y axis travel500mm
    Z axis travel500mm
    Distance from spindle nose to the work table120-620mm
    Distance from spindle center to column guideway580mm
    X rapid feed36m/min
    Y rapid feed36m/min
    Z rapid feed24m/min
    Cutting rapid feed8000mm/min
    The width of the triaxial linear guide35mm
    The number of the slider in the X axis6 pieces
    The number of the slider in the Y axis4 pieces
    The number of the slider in the Z axis4 pieces
    Triaxial screw size40/12mm
    Work table size1500x420mm
    The maximum load capacity400KG
    Table "T" type grooveThe number of grooves4pieces
    Width18mm
    Spacing90mm
    Positioning accuracy0.01mm
    Repeat positioning accuracy0.008mm
    Spindle speed range20-8000rpm/min
    Feed axis motor power1.8/1.8/2.5KW
    Feed motor connection formDirect Connection
    Taper of spindle holeBT40
    The spindle of output power5.5KW
    Cooling box formIndependent
    Tool ChangerCarousel tool changer
    Tool Capacity12pieces
    Dimension of machine tool1950/1700/2300mm
    Weight of machine2250KG


    Our Company:

    ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.


    Workpiece Samples:


    Our Exhibition:


    FAQ:

    1. Are you a manufacturer or a trader?

    we are the manufacturer for CNC Vertical Milling Machines.
    2. What can you buy from us?
    Vertical Machine Center, CNC VMC Milling Machine
    3. Where is the factory located? How can I visit there?
    Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access.
    4. What is your lead time?

    It depends on customers’ requirement and quantity.

    5. What is the MOQ?

    MOQ is 1 set.
