VMC CNC Vertical Milling Machine 500mm Z Axis Travel 8000mm/Min Cutting Rapid Feed

ASLT(Zhangzhou) Machinery Technology Co., Ltd.
Contact Now
    Buy cheap VMC CNC Vertical Milling Machine 500mm Z Axis Travel 8000mm/Min Cutting Rapid Feed from wholesalers

    Buy cheap VMC CNC Vertical Milling Machine 500mm Z Axis Travel 8000mm/Min Cutting Rapid Feed from wholesalers
    • Buy cheap VMC CNC Vertical Milling Machine 500mm Z Axis Travel 8000mm/Min Cutting Rapid Feed from wholesalers
    • Buy cheap VMC CNC Vertical Milling Machine 500mm Z Axis Travel 8000mm/Min Cutting Rapid Feed from wholesalers

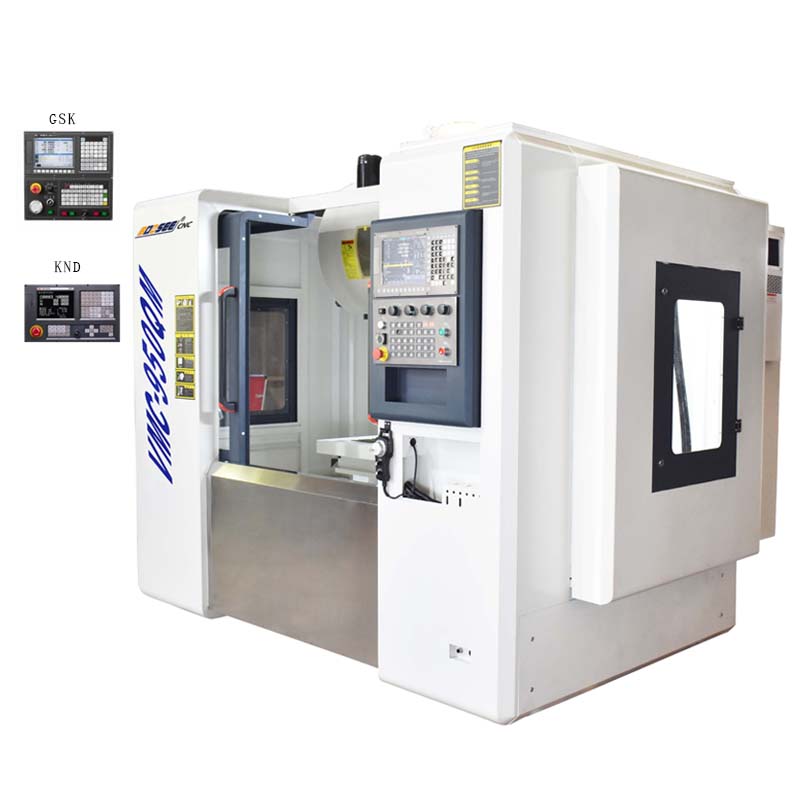

    VMC CNC Vertical Milling Machine 500mm Z Axis Travel 8000mm/Min Cutting Rapid Feed

    Ask Lasest Price
    Brand Name : Bodsee
    Model Number : CNC-950QM
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 30set/month
    Delivery Time : Negotiation
    • Product Details
    • Company Profile

    VMC CNC Vertical Milling Machine 500mm Z Axis Travel 8000mm/Min Cutting Rapid Feed

    500mm Z Axis Travel VMC Milling Machine CNC Vertical Milling Machine Long Work Table


    Product Description:

    CNC machines are making parts around the world for almost every industry. It can be finished in a clamping continuous milling, drilling, expansion, reaming, boring, tapping and two-dimensional three-dimensional curved surface, precise machining of the inclined plane, processing to realize programmed, shorten the production cycle, thus to make the good economic benefits.


    Product Specification:

    Model No.CNC-950QM
    X axis travel900mm
    Y axis travel500mm
    Z axis travel500mm
    Distance from spindle nose to the work table120-620mm
    Distance from spindle center to column guideway580mm
    X rapid feed36m/min
    Y rapid feed36m/min
    Z rapid feed24m/min
    Cutting rapid feed8000mm/min
    The width of the triaxial linear guide35mm
    The number of the slider in the X axis6 pieces
    The number of the slider in the Y axis4 pieces
    The number of the slider in the Z axis4 pieces
    Triaxial screw size40/12mm
    Work table size1500x420mm
    The maximum load capacity400KG
    Table "T" type grooveThe number of grooves4pieces
    Width18mm
    Spacing90mm
    Positioning accuracy0.01mm
    Repeat positioning accuracy0.008mm
    Spindle speed range20-8000rpm/min
    Feed axis motor power1.8/1.8/2.5KW
    Feed motor connection formDirect Connection
    Taper of spindle holeBT40
    The spindle of output power5.5/7.5KW
    Cooling box formIndependent
    Tool ChangerCarousel tool changer /
    Side-mount tool changer
    Tool Capacity12-24pieces
    Dimension of machine tool2800*2200*2300mm
    Weight of machine3150KG


    Product Features:

    1. Made of high-density, high rigidity material, high strength and good wear resistance.

    2. 12/24T ATC.

    3. X, Y, Z rails adopt stainless steel telescopic cover.

    4. Large travel: larger travels in all three directions than those of the same specifications in the market.


    Our Company:

    ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.



    Workpiece Sample:


    Our Exhibition:


    FAQ:
    1. How to send my enquiry?
    You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
    2. How can I choose the most suitable machines?
    Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
    best model for you.
    3: What's your main products of your company?
    We specialized in cnc vertical machine, VMC milling machine.
    4. Check the acceptance
    When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are
    damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any
    problem about machine, please take pictures and contact us immediately.
    5. OEM Service
    We accept purchase orders with customers' brand or trade mark.
