    Precision CNC Vertical Milling Centre Machine Long Work Table 1800x420mm

    Ask Lasest Price
    Brand Name : Bodsee
    Model Number : CNC-1250GM
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 30 Set/Month
    Delivery Time : Negotiation
    • Product Details
    • Company Profile

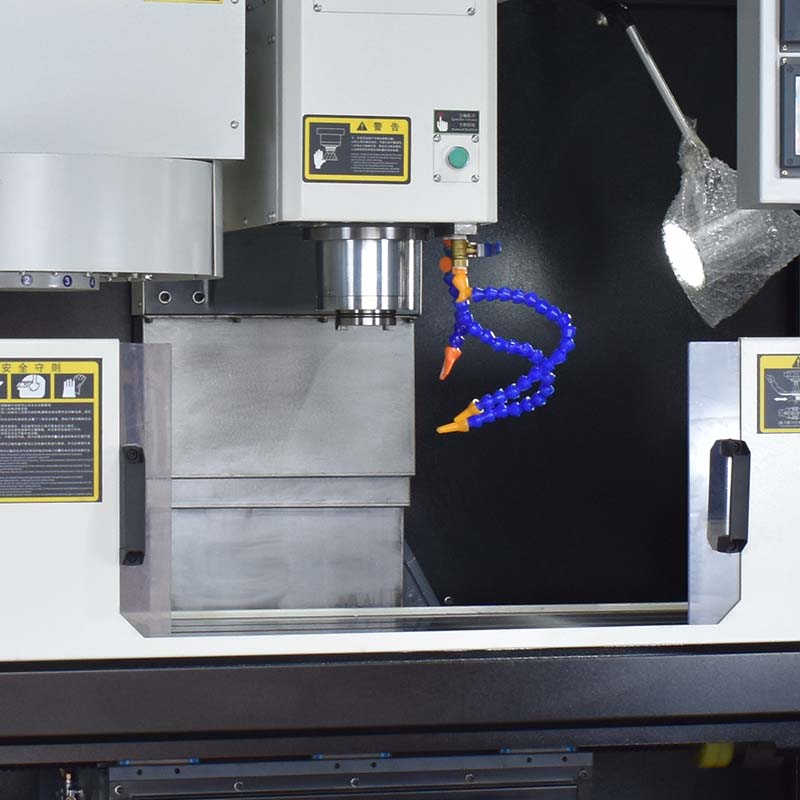

    Precision CNC Vertical Milling Centre Machine Long Work Table 1800x420mm

    Precision CNC Machining Center Long Work Table 1800x420mm Vertical Milling Center Machine
    Product Features:

    1. Automatic intermittent lubrication.

    2. CNC controller system: You can choose the CNC system brand: KND, GSK, SYNTEC, SIEMENS, FANUC

    3. Large travel: larger travels in all three directions than those of the same specifications in the market.

    4. The long span Y type column design leads high rigidity and high stability.

    5. 3 axes assembled with high precision linear ball guide ways shaft ensure high machining precision and rapid feeding speed.


    Product Specification:


    Model No.CNC-1250GM
    X axis travel1200mm
    Y axis travel500mm
    Z axis travel500mm
    Distance from spindle nose to the work table120-620mm
    Distance from spindle center to column guideway580mm
    X rapid feed36m/min
    Y rapid feed36m/min
    Z rapid feed24m/min
    Cutting rapid feed8000mm/min
    The width of the triaxial linear guide35mm
    The number of the slider in the X axis6 pieces
    The number of the slider in the Y axis4 pieces
    The number of the slider in the Z axis4 pieces
    Triaxial screw size40/12mm
    Work table size1800x420mm
    The maximum load capacity400KG
    Table "T" type grooveThe number of grooves4pieces
    Width18mm
    Spacing90mm
    Positioning accuracy0.01mm
    Repeat positioning accuracy0.008mm
    Spindle speed range20-8000rpm/min
    Feed axis motor power1.8/1.8/2.5KW
    Feed motor connection formDirect Connection
    Taper of spindle holeBT40
    The spindle of output power5.5/7.5KW
    Cooling box formIndependent
    Tool ChangerCarousel tool changer
    Tool Capacity12/24pieces
    Dimension of machine tool2250*1700*2300mm
    Weight of machine2450KG


    Company Information:

    ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.


    Workpiece Sample:


    Our Exhibition:


    FAQ:
    1.How to send my enquiry?
    You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
    2 . How can I choose the most suitable machines?

    Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

    You can also send us the products drawing ,we will choose the most suitable machines for you .

    3. Where is the factory located? How can I visit there?
    Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access.
    4. What's the MOQ?

    1 set .

    5. What is your delivery time ?

    The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
