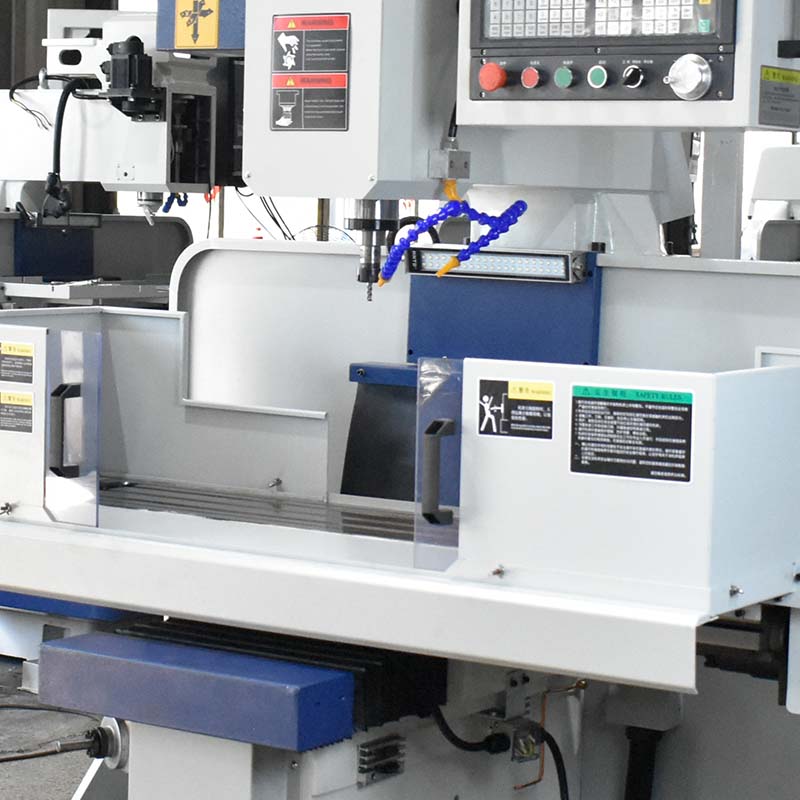

R8(NT30) Spindle CNC Vertical Milling Machine 830mm X Axis Travel

R8(NT30) Spindle 830mm X Axis Travel CNC Milling Machine Vertical CNC Machine

Product Features:

1. X. Y and Z guide rails are heavy duty pathway with high rigidity and low noise. They cooperate with automatic lubricative system to improve the precision life of machine tools;

2. High efficiency: equipped with a tool magazine featuring swift automatic tool changing and rigidity tapping

3. Large travel: larger travels in all three directions than those of the same specifications in the market.

4. The machine external protection of the machine tool adopts semi-protective structure design, which is easy to operate, safe and reliable;

Product Specification:

Model No.		CNC-M4S
X axis travel		830mm
Y axis travel		340(360)mm
Z axis travel		360+120 mm
Distance from spindle nose to the work table		120+360mm
Distance from spindle center to column guideway		370mm
X rapid feed		8 m/min
Y rapid feed		8 m/min
Z rapid feed		6 m/min
Cutting rapid feed		1~4000mm/min
Triaxial screw size	X	3208
	Y	3208
	Z	2505
Work table size		1370*280mm
The maximum load capacity		350KG
Table "T" type groove	The number of grooves	3pieces
	Width	16.5mm
	Spacing	63.5mm
Positioning accuracy		0.025/300mm
Repeat positioning accuracy		0.015mm
Spindle speed range		80-4500r/min
Spindle Motor Power(kW)		3kw
Spindle Diameter		Φ85.725mm
Cooling Motor		0.15kw
Triaxial Feed Motor Torque		6/6/4Nm
Taper of spindle hole		R8(NT30)
Power Form (Voltage)		Customized
Electric Capacity		7KVA
Water tank capacity		40L
Cooling box form		Integrated
Dimension of machine tool		1500/1820/2380mm
Weight of machine		1700kg

Advantages:

1. High rigidity and great ability of shock absorption.

2. High efficiency: equipped with a tool magazine featuring swift automatic tool changing and rigidity tapping

3. Large travel: larger travels in all three directions than those of the same specifications in the market.

Our company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel

Workpiece Sample:

FAQ:

1. How can I choose the most suitable machines ?

Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

2. What's your main products of your company?

We specialized in cnc vertical machine, VMC milling machine.

3. Where is the factory located? How can I visit there?

Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access. You are warmly welcomed to visit us.

4. What's the MOQ?

MOQ is 1 set.

5. What is your delivery time ?

The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.

Thank you for your precious time! For more information about the Machining Center, please feel free to contact me!
