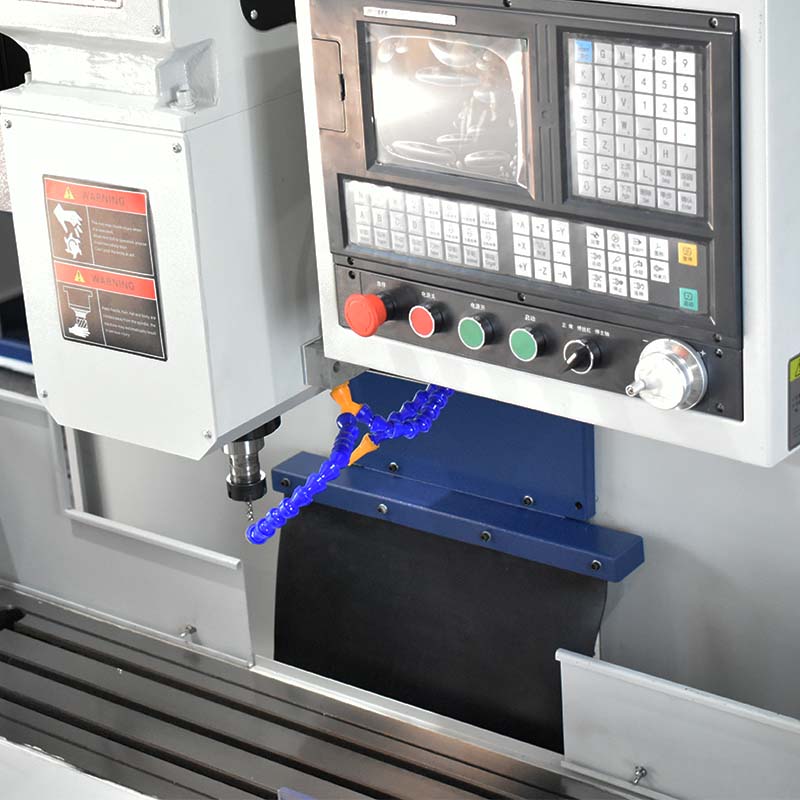

    CNC VMC Vertical Machining Center High Rigidity 0.025/300mm Positioning Accuracy

    Ask Lasest Price
    Brand Name : Bodsee
    Model Number : CNC-M4S
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 30set/month
    Delivery Time : Negotiation
    • Product Details
    • Company Profile

    CNC VMC Vertical Machining Center High Rigidity 0.025/300mm Positioning Accuracy

    High Rigidity 0.025/300mm Positioning Accuracy VMC Vertical Machining Center Cnc Machine Center


    Product Features:

    1. The machine external protection of the machine tool adopts semi-protective structure design, which is easy to operate, safe and reliable;

    2. Adopt the Taiwan spindle with high precision and rigidity, with high radial and axial load capacity, and the maximum speed can reach 4500rpm.

    3. Adopt reliable centralized and automatic lubrication device to automatic intermittent lubrication for each lubricating point of the machine tool at fixed time and fixed quantity, and the lubrication time can be adjusted according to the working conditions.

    4. X. Y. Z axis feed adopt high-precision grinding ball screw and the feeding speed is stable.


    Product Specification:


    Model No.CNC-M4S
    X axis travel830mm
    Y axis travel340(360)mm
    Z axis travel360+120 mm
    Distance from spindle nose to the work table120+360mm
    Distance from spindle center to column guideway370mm
    X rapid feed8 m/min
    Y rapid feed8 m/min
    Z rapid feed6 m/min
    Cutting rapid feed1~4000mm/min
    Triaxial screw sizeX3208
    Y3208
    Z2505
    Work table size1370*280mm
    The maximum load capacity350KG
    Table "T" type grooveThe number of grooves3pieces
    Width16.5mm
    Spacing63.5mm
    Positioning accuracy0.025/300mm
    Repeat positioning accuracy0.015mm
    Spindle speed range80-4500r/min
    Spindle Motor Power(kW)3kw
    Spindle DiameterΦ85.725mm
    Cooling Motor0.15kw
    Triaxial Feed Motor Torque6/6/4Nm
    Taper of spindle holeR8(NT30)
    Power Form (Voltage)Customized
    Electric Capacity7KVA
    Water tank capacity40L
    Cooling box formIntegrated
    Dimension of machine tool1500/1820/2380mm
    Weight of machine1700kg


    Product description:

    This VMC is suitable for mechanical processing and mold making .Its comprehensive processing capacity is strong, the workpiece can be completed after a single processing content, processing accuracy is higher, the middle of the difficulty of the bulk of the workpiece, the efficiency of ordinary equipment is 5 to 10 times, in particular, it can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing or small and medium-sized multi-species production is more applicable.


    Our company:

    ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel



    Workpiece Sample:


    FAQ:

    1. How can I choose the most suitable machines ?

    Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

    2. What's your main products of your company?

    We specialized in cnc vertical machine, VMC milling machine.
    3. Where is the factory located? How can I visit there?
    Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access. You are warmly welcomed to visit us.
    4. What's the MOQ?
    MOQ is 1 set.

    5. What is your delivery time ?

    The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
