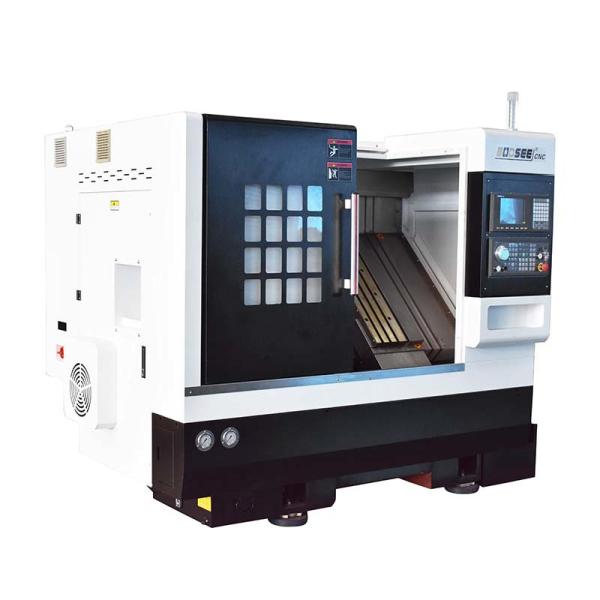

Industrial High Precision Metal Cnc Lathe Machine 650*190/50mm

    Buy cheap Industrial High Precision Metal Cnc Lathe Machine 650*190/50mm from wholesalers

    Buy cheap Industrial High Precision Metal Cnc Lathe Machine 650*190/50mm from wholesalers
    • Buy cheap Industrial High Precision Metal Cnc Lathe Machine 650*190/50mm from wholesalers
    • Buy cheap Industrial High Precision Metal Cnc Lathe Machine 650*190/50mm from wholesalers

    Industrial High Precision Metal Cnc Lathe Machine 650*190/50mm

    Ask Lasest Price
    Brand Name : Bodsee
    Model Number : BDS-46B/BDS-46C
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 30sets per month
    Delivery Time : negotiation
    • Product Details
    • Company Profile

    Industrial High Precision Metal Cnc Lathe Machine 650*190/50mm

    650*190/50mm Work Table Size Center Distance Industrial Metal Lathe Machine High Precision Cnc Lathe Machine
    Product Features
    Standard : SYNTEC/GSK system
    Standard spindle hole is Φ45mm/Φ56mm
    45 degrees slant bed CNC lathe machine
    X, Z direction servo motor through high torque low inertia flexible coupling directly connected with the screw, screw supporting the use of
    pre-stretching structure.
    Product Specification:
    Model No.BDS-46BBDS-46C
    Max swing over bedΦ460mmΦ460mm
    Max cutting diameterΦ280mmΦ280mm
    Maximum machining diameter on tool restΦ126mmΦ126mm
    Spindle noseA2-4/A2-5(optional)A2-4/A2-5(optional)
    Spindle through hole diameterΦ45mm/Φ56mmΦ45mm/Φ56mm
    Trombone through-hole diameterΦ35mm/Φ45mmΦ35mm/Φ45mm
    Spindle rotation speed0-5000rpm/0-6000rpm0-5000rpm/0-6000rpm
    The spindle of output power5.5KW/7.55.5KW/7.5KW
    X/Z Screw model3210/32103210/3210
    Guideway specifications (X/Z)30mm/30mm30mm/30mm
    (X/Z)Axis Max Travel900mm/360mm900mm/360mm
    Rapid feed28/28m/min28/28m/min
    Minimum setting unit0.001m/min0.001m/min
    Recommended X-axis motor torque8N.M8N.M
    Work Table Size/Center distance650*190/50mm650*190/50mm
    Distance from spindle center to the work table63mm63mm
    Bed form and slopeOverall 45°Overall 45°
    Optional systemSYNTEC/GSKSYNTEC/GSK
    Dimension (L*W*H)2200*1530*17802360*1600*1780
    Weight2.4T2.7T


    Our Company:

    ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.


    FAQ:

    1.How to send my enquiry?
    You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
    2. What's the main products of your company?
    We specialized in many kinds of CNC machines, CNC Lathe machines, Vertical VMC Milling Machine.
    3. Are you a manufacturer or a trader?
    we are the manufacturer for CNC Vertical Milling Machines, cnc lathe machine.
    4. Is your company a factory or trading company ?

    We are factory and located in Zhangzhou City, Fujian Province, China.

    5. What's the MOQ?

    A: 1 set .

    6. What is your delivery time ?

    The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
